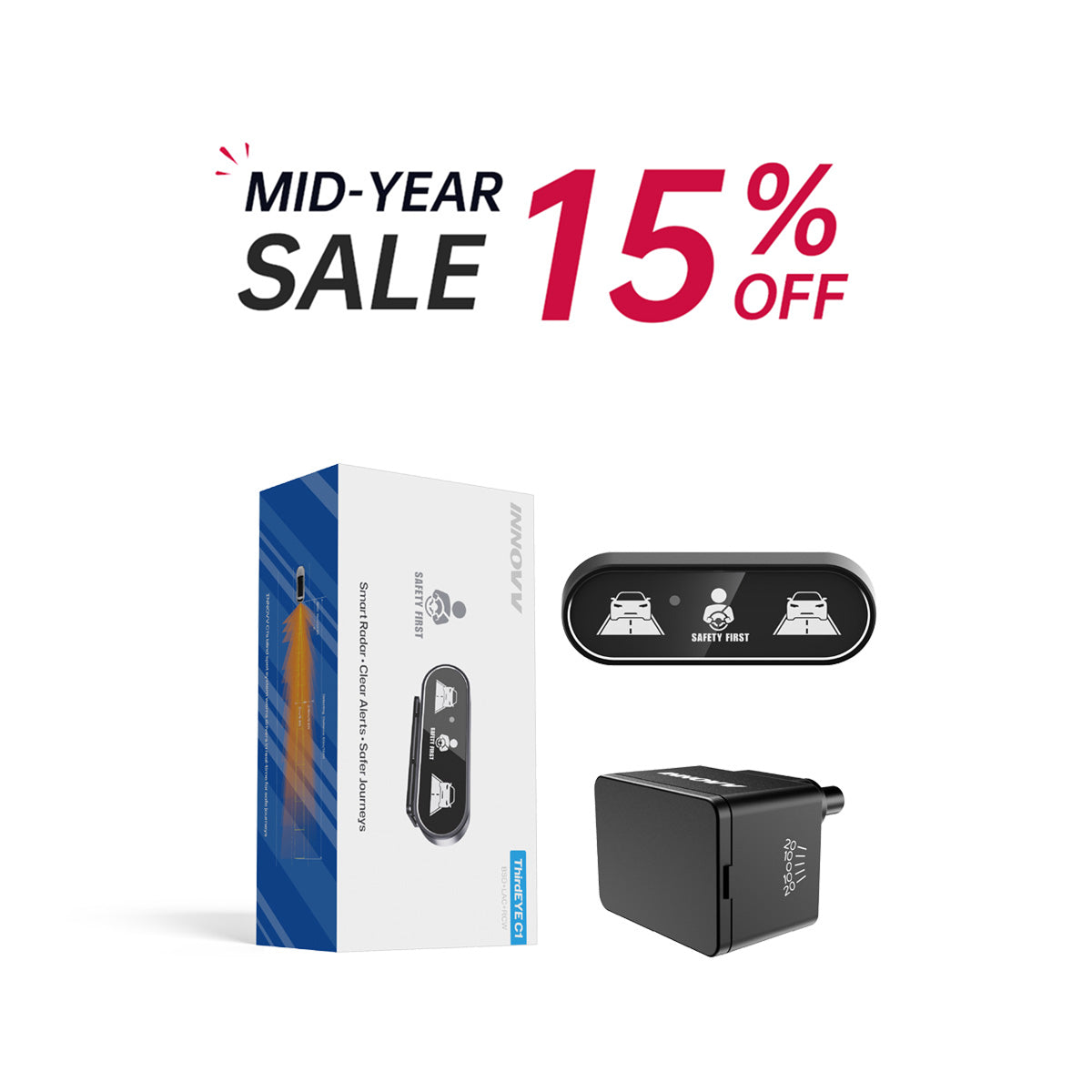

ThirdEYE C1 Blind Spot Monitoring (BSM) system
INNOVV C1 uses a 77 GHz millimeter‑wave radar to monitor the vehicle’s side and rear blind spots, alerting the driver via the C1's indicator lights when a risk is detected to help enable safer lane changes and reverse parking.
Pairs well with
ThirdEYE C1 Blind Spot Monitoring (BSM) system
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Free Global Shipping and 2-Year Warranty
Triple Protection
Blind Spot Monitoring (BSM)
Focuses on monitoring vehicles in the side and rear blind spots, making it ideal for urban commuting and daily lane changes; basic blind‑spot alerts sufficiently cover typical everyday driving scenarios.
Lane Change Assist (LCA)
Provides longer‑range, faster relative‑speed sensing with tiered warnings, optimized for highway/freeway driving with frequent lane changes.
Rear Collision Warning (RCW)
Delivers earlier alerts when a vehicle approaches rapidly from behind, enabling earlier evasive action and helping reduce rear‑end collisions; suitable for congested traffic or close following conditions.
What makes the ThirdEYE C1 special?
INNOVV ThirdEYE C1 integrates BSM (Blind Spot Monitoring), LCA (Lane Change Assist), and RCW (Rear Collision Warning) into a single rear-side safety assist system. A single rearward millimeter‑wave corner radar provides continuous protection—from blind‑spot monitoring and lane‑change risk assessment to rear‑end collision warning—covering high‑frequency scenarios such as urban commuting, daily lane changes, highway/freeway merging, and stop‑and‑go traffic.
Key Features
- All‑weather reliability: The mmWave radar delivers stable detection in rain, fog, nighttime, and backlight conditions, consistently outputting target distance, relative velocity, and azimuth for dependable performance day and night.
- Unified interaction: A driver‑oriented interface uses in‑cabin indicators as the primary cue, augmented with audible beeps, to deliver clear, non‑intrusive alerts and help prevent information overload.
- Easy integration: Designed for seamless cooperation and expansion with BSD, LCW, RCTA, and other ADAS functions within a unified system architecture.
Specifically designed for outdoor waterproofing
Engineered to IP67 for dustproof and waterproof protection, built to withstand rain, wind, and harsh outdoor conditions.
Higher‑accuracy 77 GHz automotive radar vs. 24 GHz
Transitioning from 24 GHz to 77 GHz delivers a major leap in radar performance for vehicles: up to 4 GHz bandwidth enables ~4 cm range resolution (vs. ~75 cm at 24 GHz, ~20× better) and ~3× better velocity resolution/accuracy. The shorter wavelength of 77 GHz also reduces antenna dimensions to about 1/3 of 24 GHz, easing integration and supporting aggressive size reduction for ThirdEYE C1.
Wiring Diagram for ThirdEYE C1 Installation
Major Component
Warning light display *1
Rear Radar Module * 1
ThirdEYE C1 User Manual *1
Power cable *3
Red Sticker*1
Rear Radar Accessory Kit*1
Indicator Light Accessory Kit*1
INSTALLATION SHOWCASE
Product details
📝 Description
INNOVV C1 uses a 77 GHz millimeter‑wave radar to monitor the vehicle’s side and rear blind spots, alerting the driver via the C1's indicator lights when a risk is detected to help enable safer lane changes and reverse parking.
📦 Package Contents
Warning Light *1
Rear Radar Module * 1
ThirdEYE C1 User Manual *1
Power extension cable 4 m *1
Power cord 1 m *1
Power cord 2 m *1
Red Sticker*1
Rear Radar Accessory Kit:
70×40 mm black 0.8 mm thick radar mounting bracket*1
3M VHB tape for bracket 70x40x2 mm*2
304 M3 bracket screw*4
2mm L‑shaped hex key*1
Indicator Light Accessory Kit:
Indicator light mounting bracket 52×26 mm*1
3M VHB adhesive tape 52×26×2 mm*1
304 M6 bracket screw*2
4mm L‑shaped hex key*1
📡 Product Specifications
Dimensions: 35 mm (L) × 25 mm (W) × 22.2 mm (H)
Operating Frequency: 77–79 GHz
Maximum Targets: 16
Refresh Period: 33–50 ms
Detection Angle: 120°
Detection Range: 0.2–50 m
Range Accuracy: ±0.11 m
Velocity Range: –150 to 150 km/h
Display Unit：
Dimensions: 75mm (L) × 23.9mm (W) × 21mm (H)
Alert Methods: Audible alert / Visual alert
⚙️ Electrical & Environmental Specifications
Operating Voltage: 9–16 V DC
Power Consumption: < 4.5 W
Storage Temperature: -40℃ to 85℃
Operating Temperature: -40℃ to 80℃
Protection Rating: IP67 (waterproof and dustproof)
