INNOVV ThirdEYE: Advanced Motorcycle Blind Spot Detection System

Overview

Specifications

Reviews

INNOVV ThirdEYE BSD System (Mirror Version)

The INNOVV ThirdEYE is a motorcycle blind spot detection system that utilizes a 77-79GHz radar sensor to detect surrounding dynamic target vehicles.

INNOVV ThirdEYE BSD System (Mirror Version)

$268.20

$298.00

Wide field of view: 150° horizontal detection angle.
High precision: The radar uses a 77Ghz sensor.
Durable and flexible: It can provide stable performance in an environment of -40℃ to +80℃.
Up to 64 targets: Detect 64 targets simultaneously within a maximum detection range of 50m.
Easy to install: small and compact size.
Protection level: IP67 level.

Innovvation

Hign-end Design

Tax Free

Free Shipping

Goubla Support

2-year Warrenty

77-79Hz High frequency

150° wide Detection Angle

64 Targets

50 Meters Distance

IP67 Waterproof

Why Not Motorcycle Radar System?

Radar technology has found extensive use in the automotive industry, particularly in safety features. MMW radar, in particular, plays a crucial role in Advanced Driver Assistance Systems (ADAS), offering long-range detection and dynamic target detection capabilities. This system has proven to be highly beneficial for many motorcyclists.

In August 2022, the Connected Motorcycle Consortium released a white paper that focused on improving ADAS systems to better detect motorcycles on the road. This highlights the need for a reliable radar system specifically designed for motorcycles. Motorcyclists deserve enhanced comfort and safety.

Fortunately, INNOVV has been attentive to the needs of riders. After years of development and rigorous testing, the ThirdEYE, the new generation Radar system, has been proven to work flawlessly. It's time for us to introduce this user-friendly detection system to the market.

Your Road Safety Envoy

Day or night, INNOVV ThirdEYE effectively ensures road safety and protects you from potential threats.

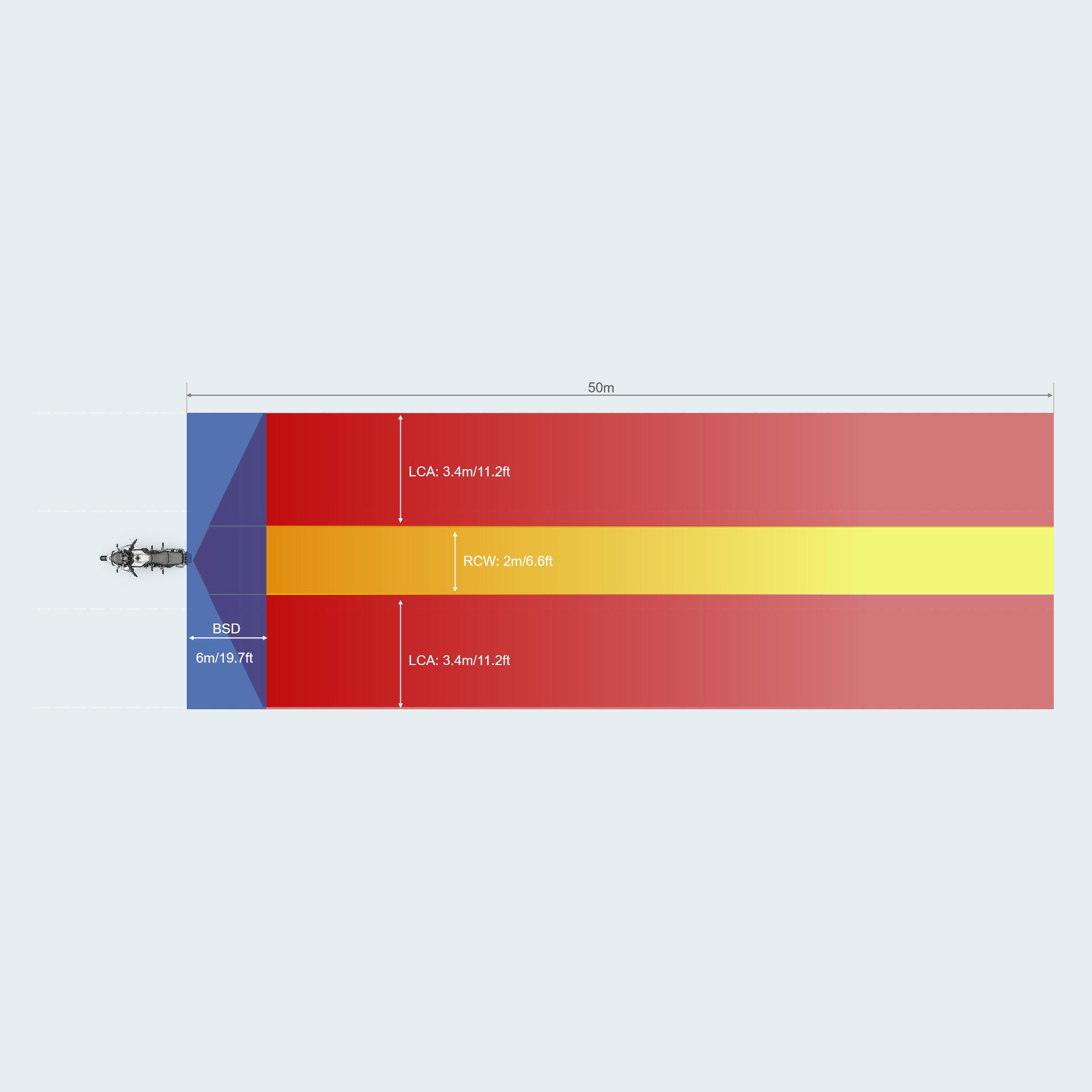

150° Wide Angle & 50m Long Distance

With a sensitive, high frequency detector, the Third Eye provides real-time warnings of traffic in your blind spot that you may miss.

Detects Up To 64 Targets

Never miss a warning of danger, ever in busy traffic.

Warning Distance Farther Means Safer

24GHz Warning Distance Only 15m 77GHz Warning Distance 50m

24GHz System

Warning Distance Only 15m Velocity Difference 60m For Rider 0.75S Response Time Warning Distance Short Warnings May Be Missed Or Late

77GHz System

Warning Distance 50m Velocity Difference 60m Ride: 3 Second Response Time Long Distance Warnings Much Safer

Mirrior__08_dd39dc23-ec46-4c30-a83f-3d2b36e368c7

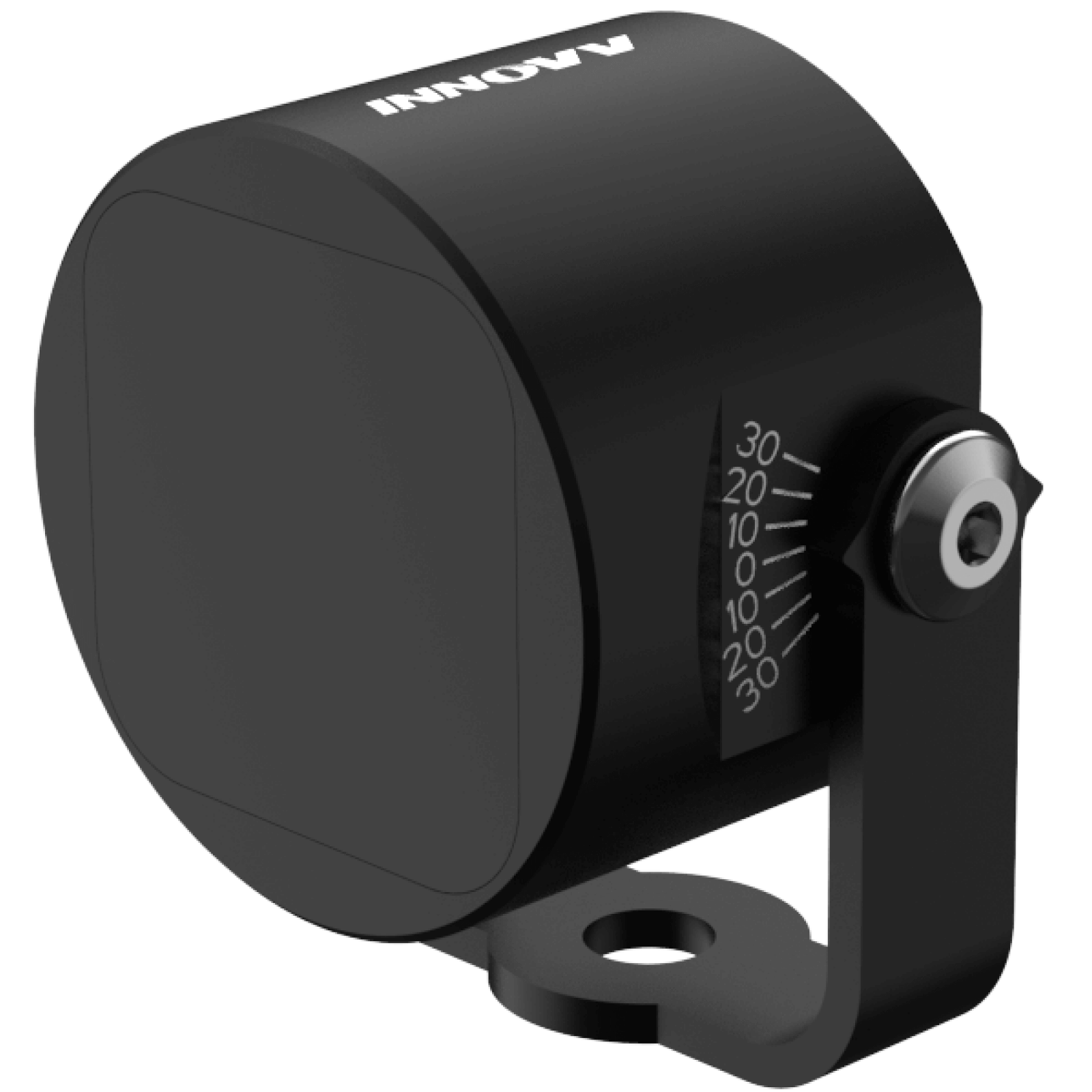

Cutting-Edge 77 Hz Sensor

The INNOVV ThirdEYE BSD System is equipped with a cutting-edge 77 Hz sensor. This advanced sensor provides enhanced range resolution, allowing for more precise measurements and a clearer understanding of the distance to surrounding objects. Additionally, the faster measurement speed ensures real-time updates, enabling riders to react swiftly to any changes in their environment.

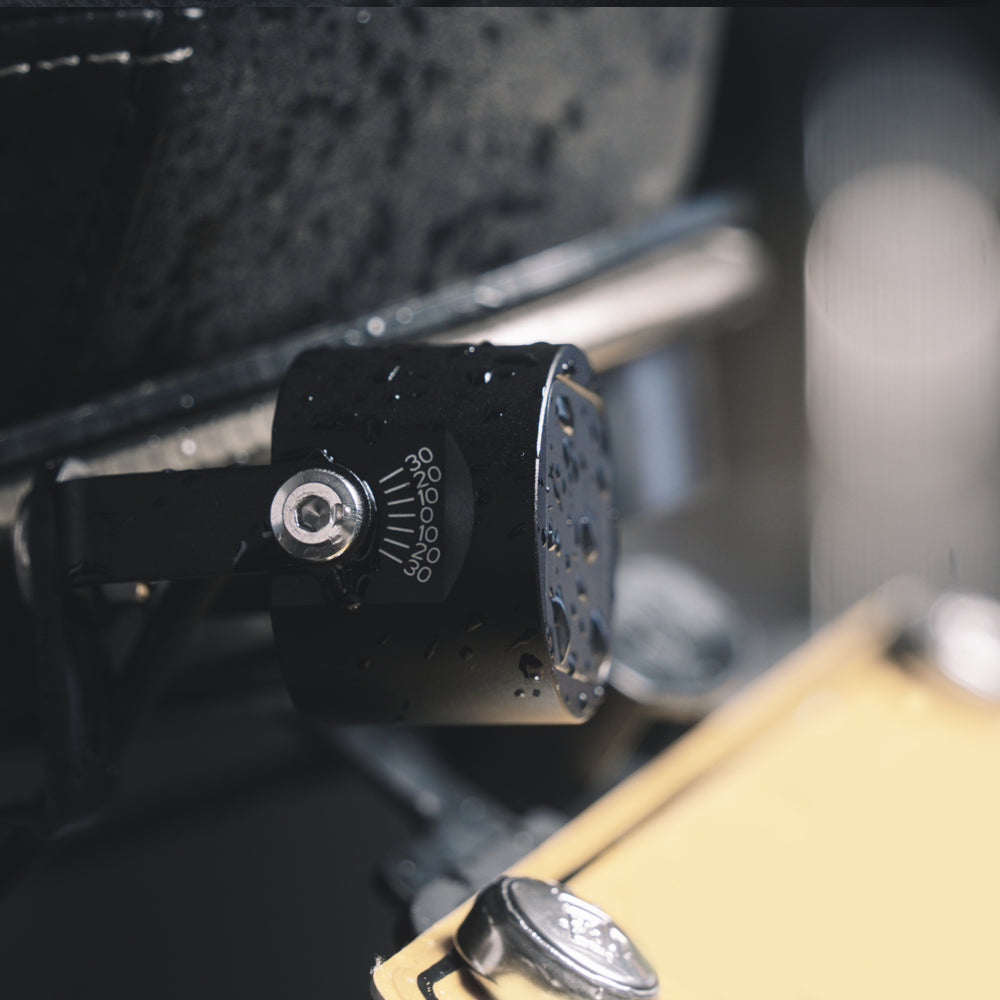

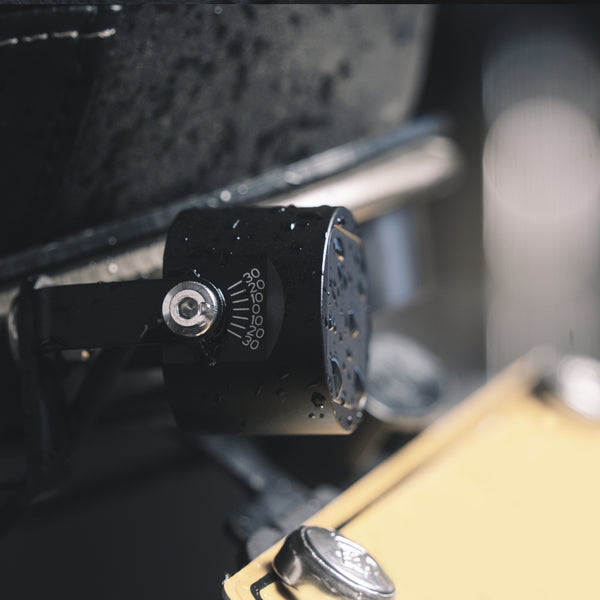

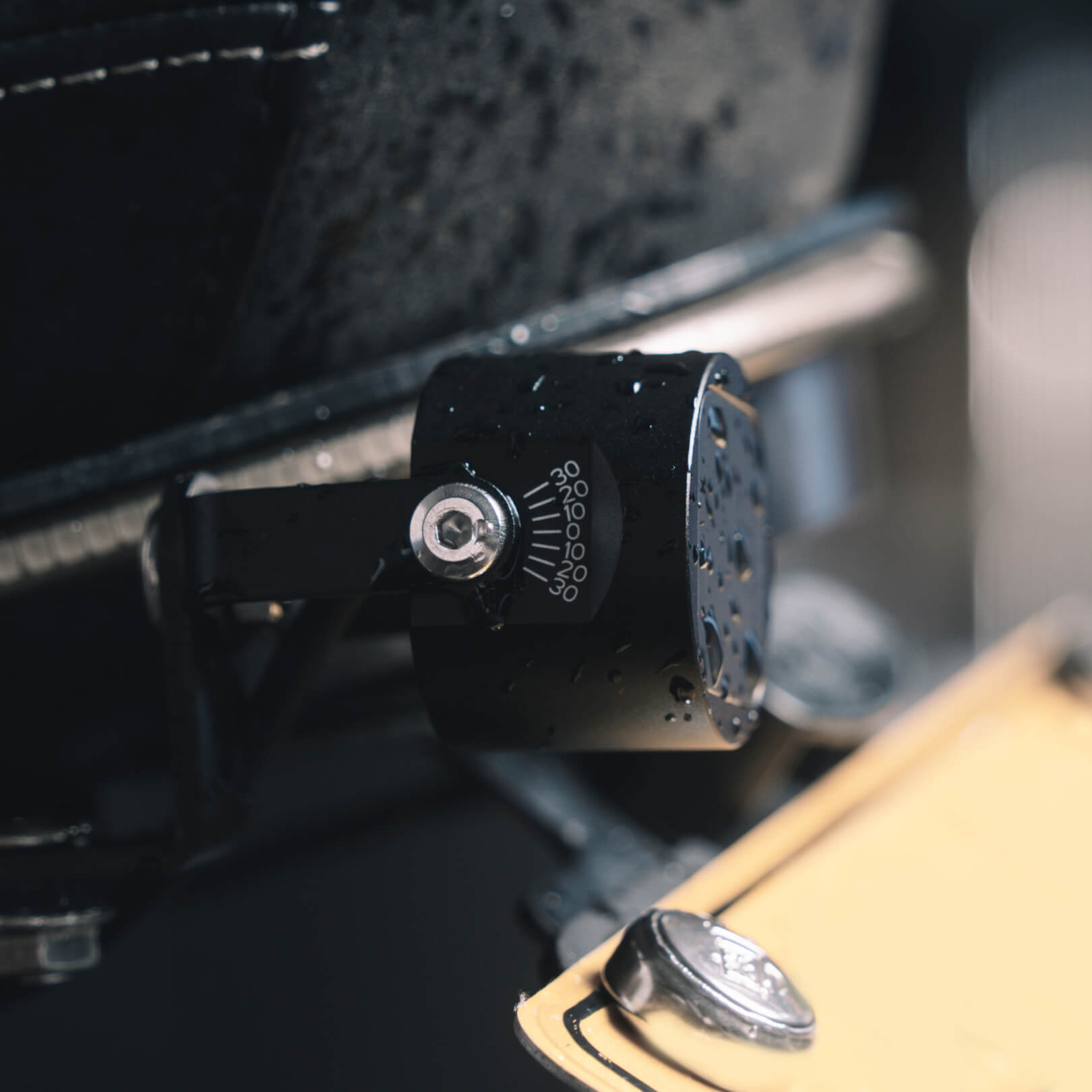

Durable And Flexible

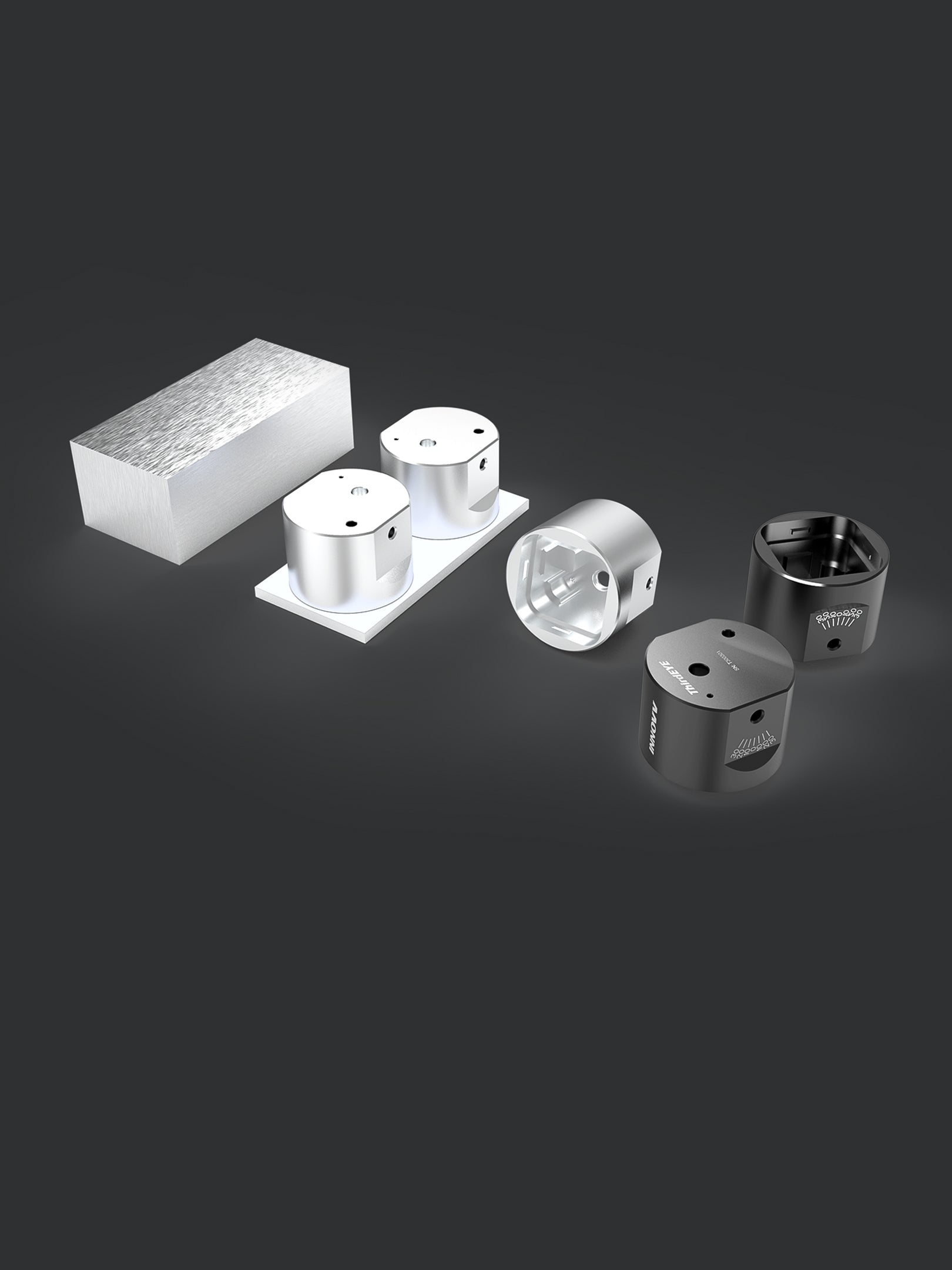

The high-end aluminum alloy housing and advanced technology of the INNOVV ThirdEYE BSD system ensure stable performance even in harsh environments ranging from -40 °C to + 80 °C. Additionally, with an IP67 rating, this motorcycle radar detection system exhibits strong resistance to water and dust.

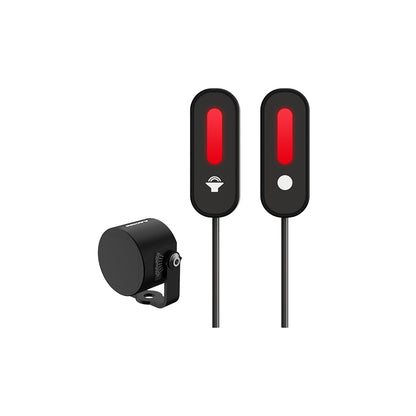

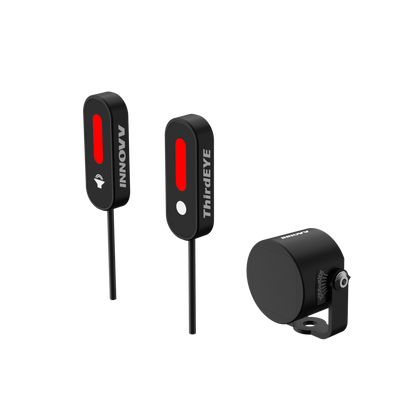

Items in Package

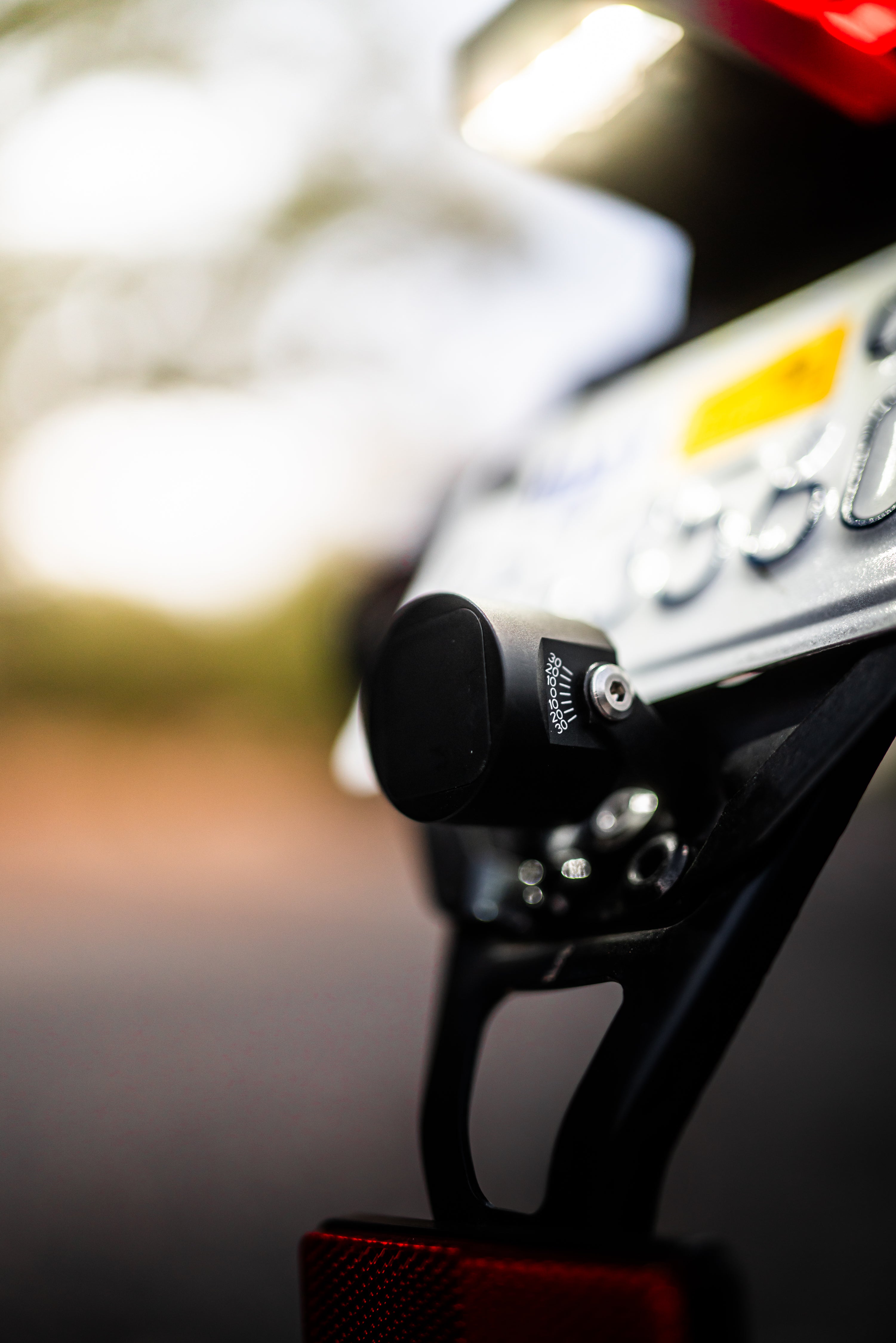

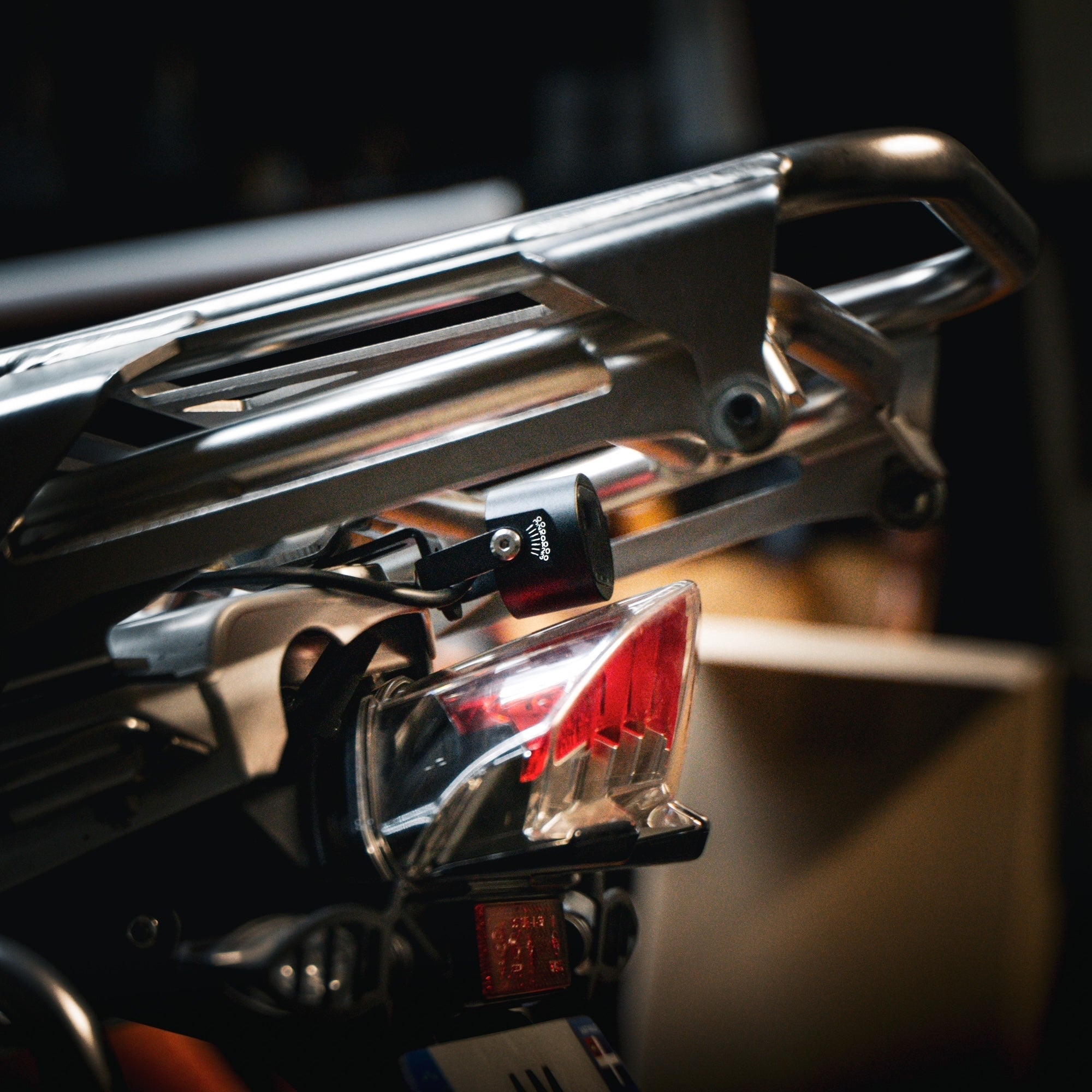

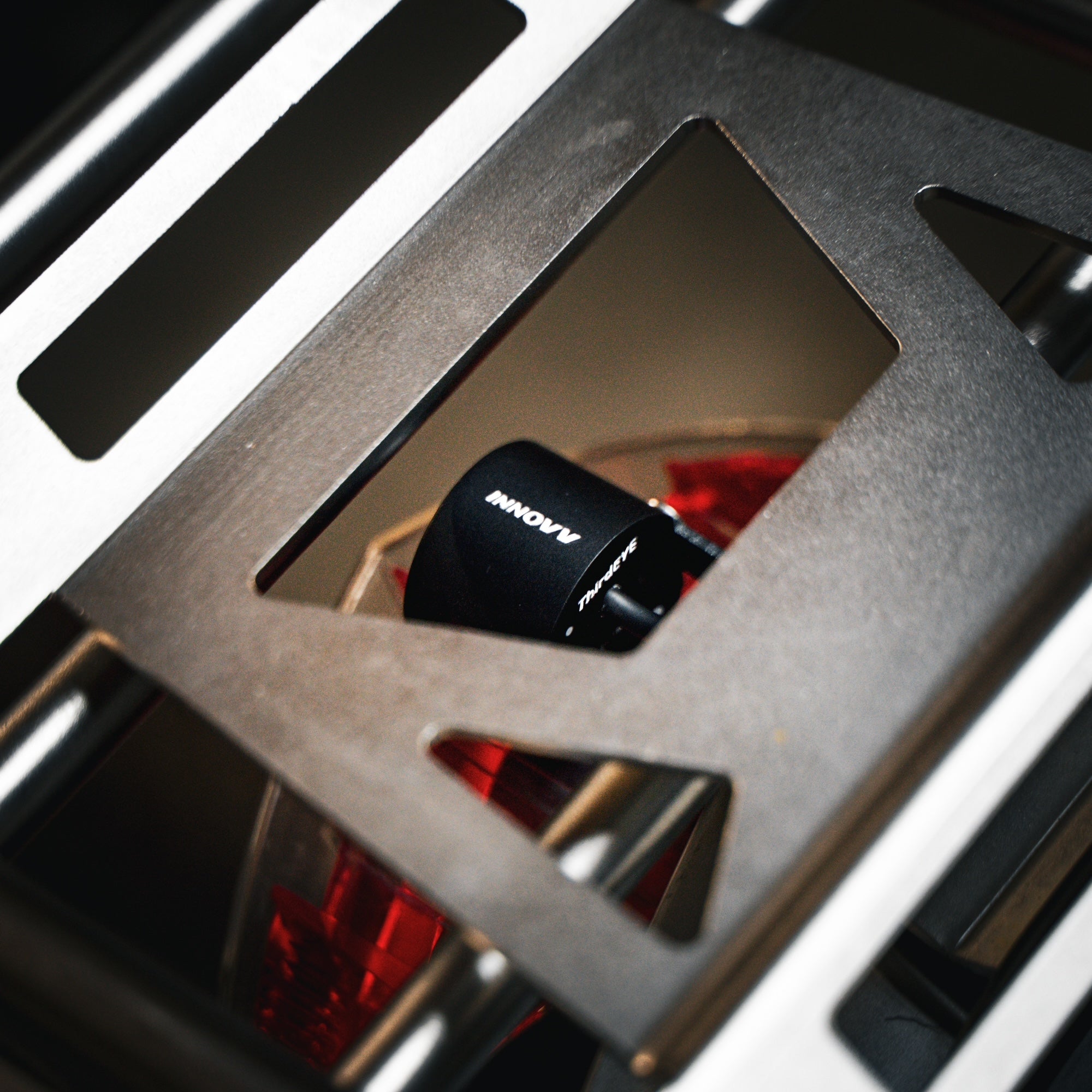

1 x Radar Detector

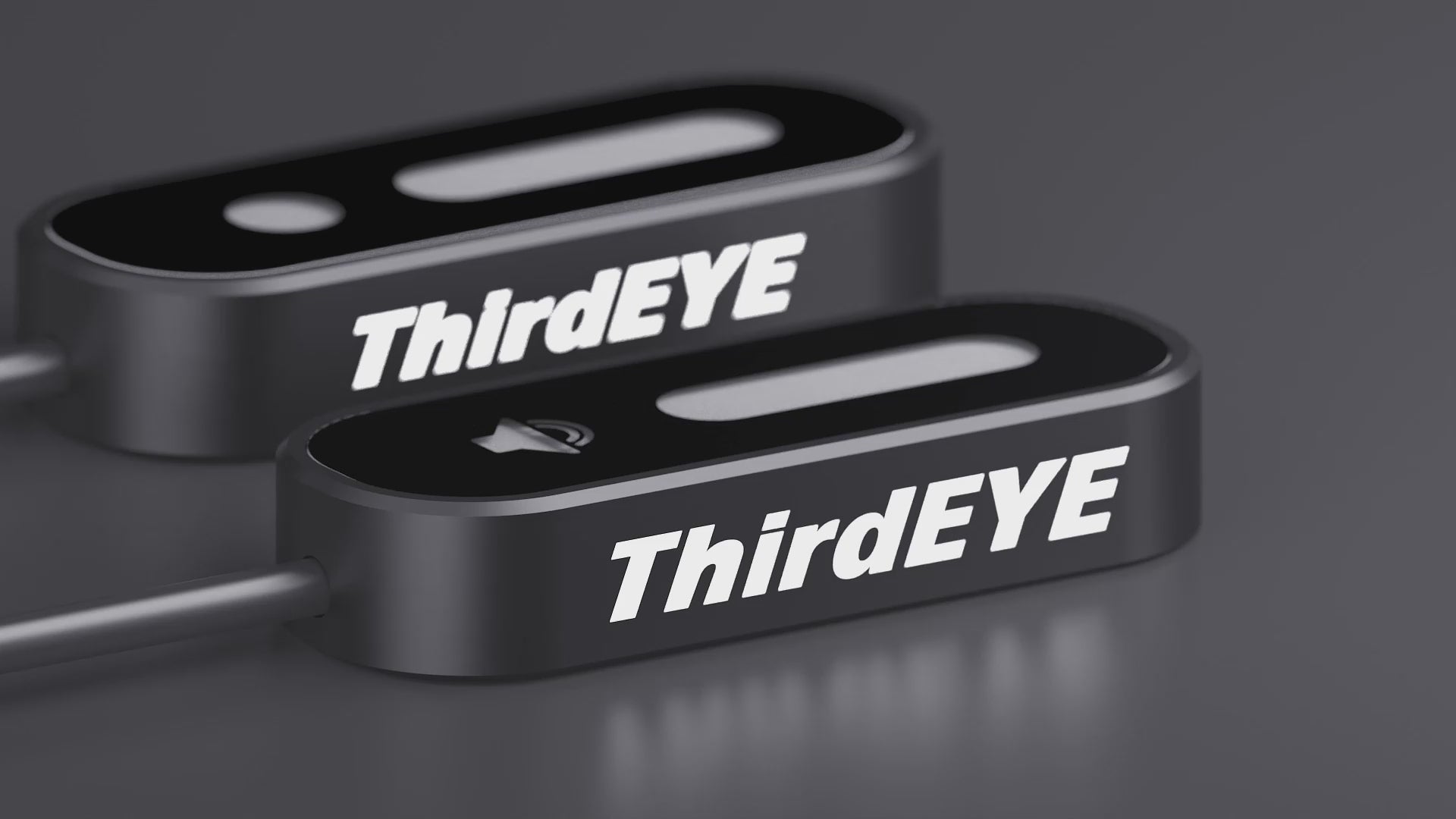

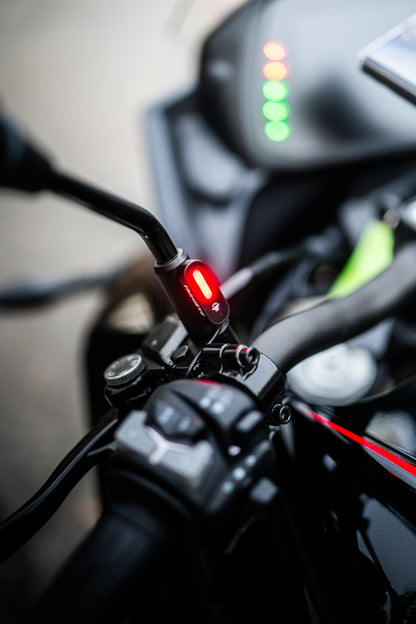

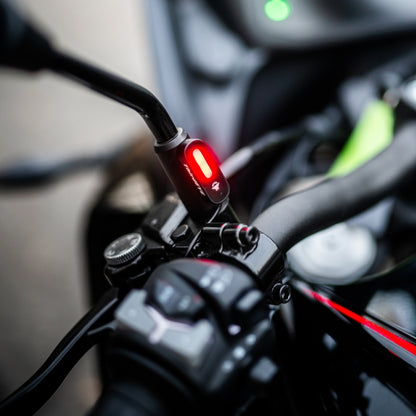

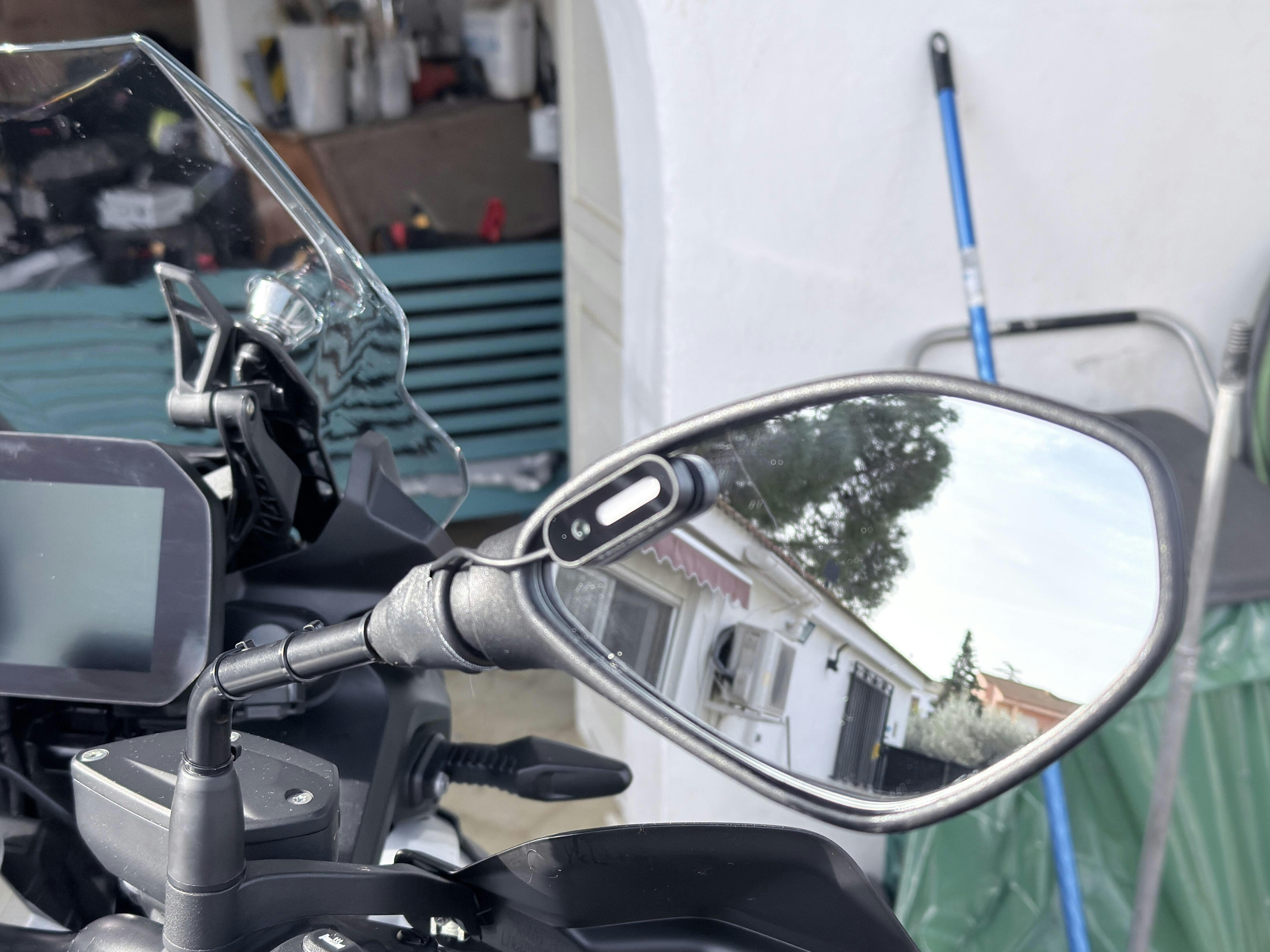

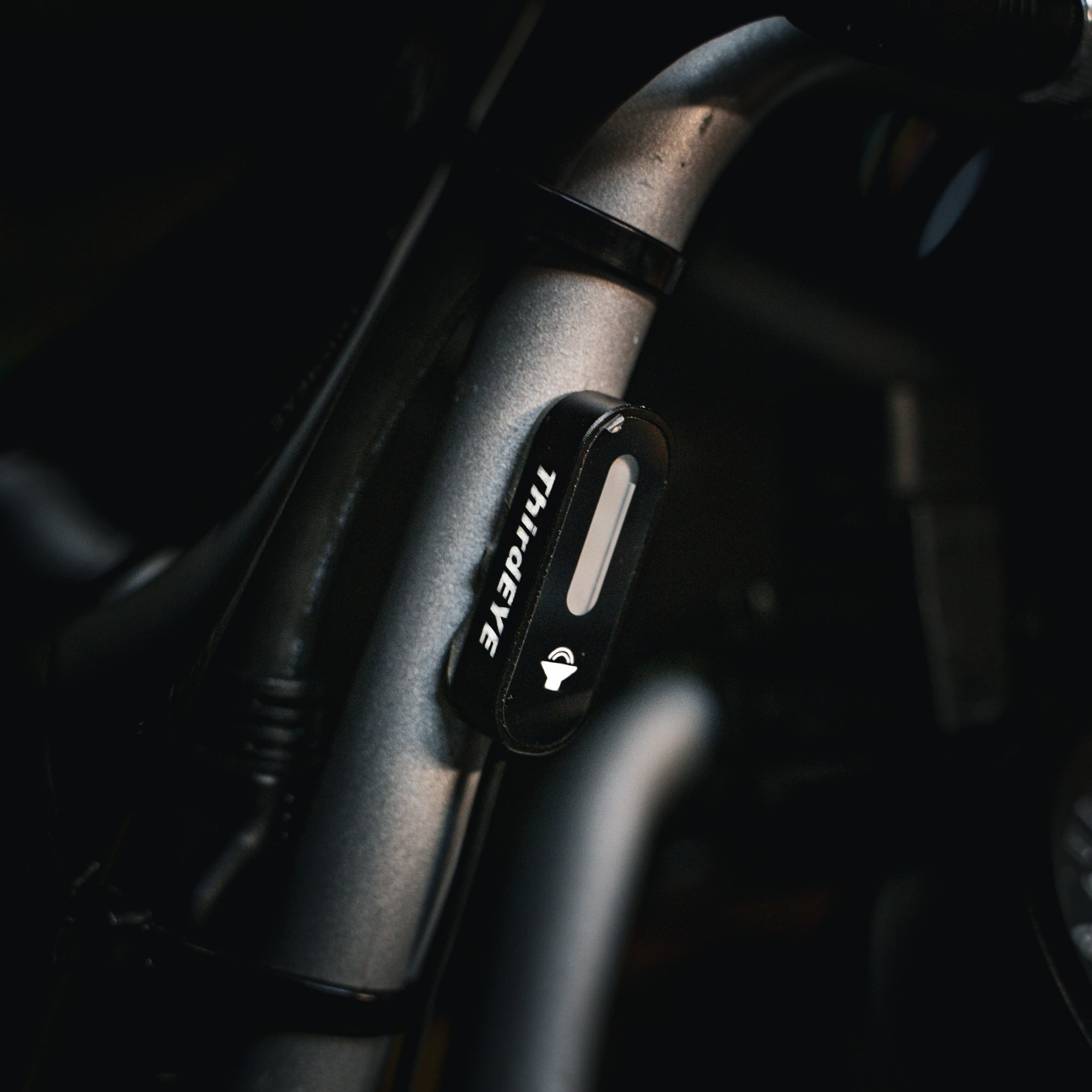

2 x Mirror Alert Display

1 x Manual

1 x Brackets Package

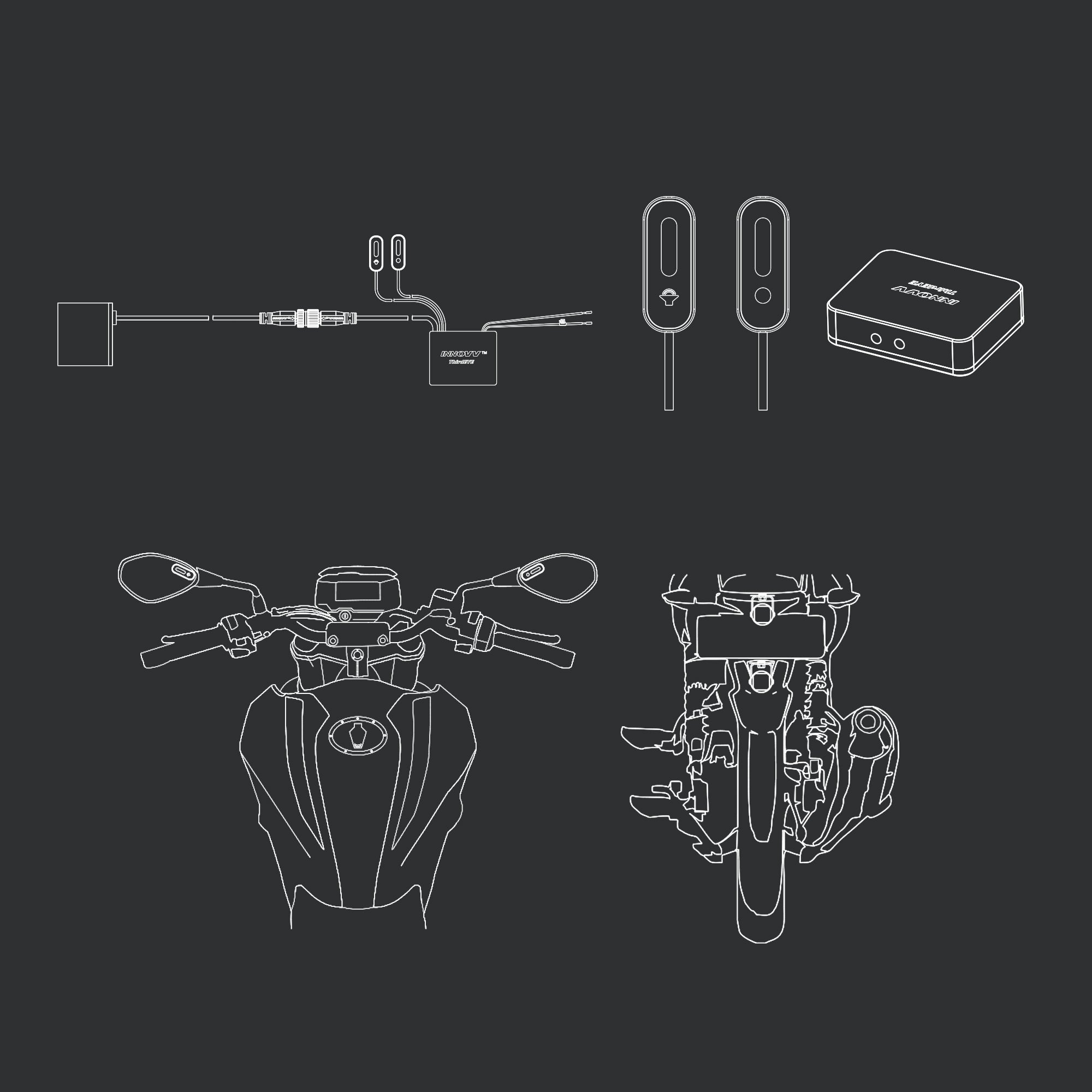

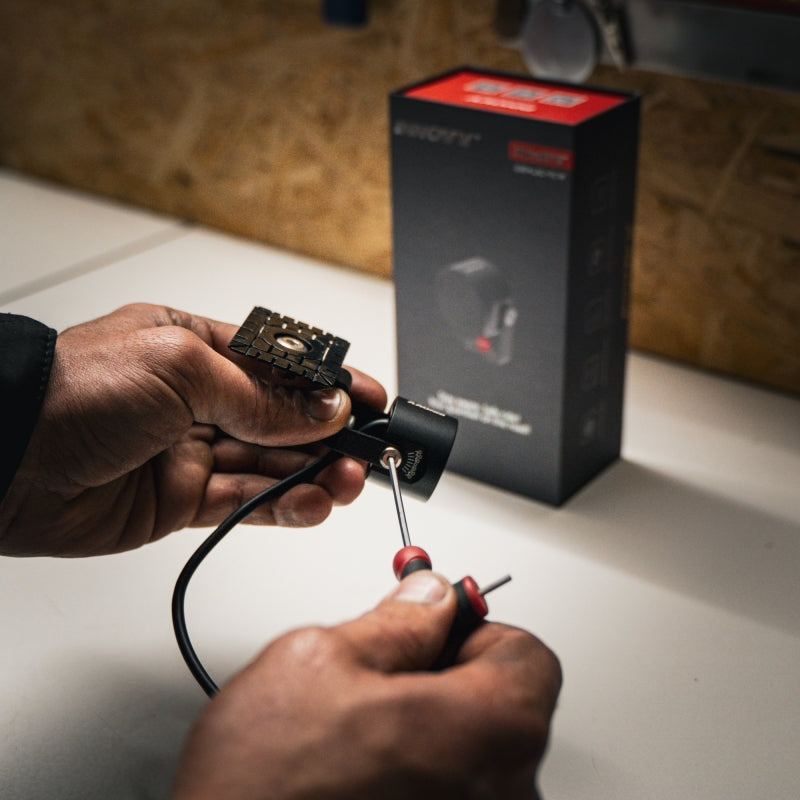

Simple installation diagram

The installation diagram briefly outlines the configuration and connections of the system components, providing an overview of the product's connection methods and the installation procedures for the recorder.

7-5_033f0ec8-b790-4202-bc66-14319ebbba67

6-9_69bf2f2a-3656-4369-9483-48702834ece0

8-5_42681a28-dd7d-4234-a4ce-14006c328dc6

5-6_f80e7dcf-1eea-4774-a915-94b8abc39d52

19-2_fb001731-b6e4-452e-8b56-e147ce001b75

20-1_71cd6f40-cc7e-4a30-93a3-a17f731a076b

21-1_86033bb6-5ba9-48ff-87f1-16897fd28dfa

4-10_dd81e44a-a193-443f-b7d9-63439afcdd6e

Specifications

Working Voltage	9 ~16V DC
Power Consumption	<3.5W
Display Size	Watch Display: Dia 50 mm x13 mm Mirror Display: 35 mm x14 mm (each piece)
Weight of Display	Watch Display: 130 g Mirror Display:100 g
Radar Detector Size	Dia 36 mm x 26 mm
Weight of Radar Detector	90 g
Storage Temperature	-40℃ ~+85℃
Working Temperature	-40℃ ~+80℃
Waterproof Rate	IP67
Working Frequency	77~79 GHz
Horizontal Angle	150°
Pitch Angel	±25°
Detecting Range	0.2 m~50 m
Accuracy of Detecting Range	0.11 m
Detecting Velocity Range	-210 km/h~210 km/h
Data Updating Frequency	Every 50 ms
Maximum Detecting Targets	64

Specifications

Working Voltage

9 ~16V DC

Power Consumption

<3.5W

Display Size

Watch Display: Dia 50 mm x13 mm

Mirror Display: 35 mm x14 mm

(each piece)

Weight of Display

Watch Display: 130 g

Mirror Display:100 g

Radar Detector Size

Dia 36 mm x 26 mm

Weight of Radar Detector

90 g

Waterproof Rate

IP67

Maximum Detecting Targets

Storage Temperature

'-40℃ ~+85℃

Working Temperature

'-40℃ ~+80℃

Working Frequency

77~79 GHz

Horizontal Angle

150°

Pitch Angel

±25°

Detecting Range

0.2 m~50 m

Accuracy of Detecting Range

0.11 m

Detecting Velocity Range

-210 km/h~210 km/h

Producto excelente.

Third Eye

The item you didn't think you needed.........we'll you do,
another cracking piece of kit from Innovv to bring piece of mind regarding your blinds spots

Excelente product
easy to installed
recommended - must to have

Very happy. Well built.

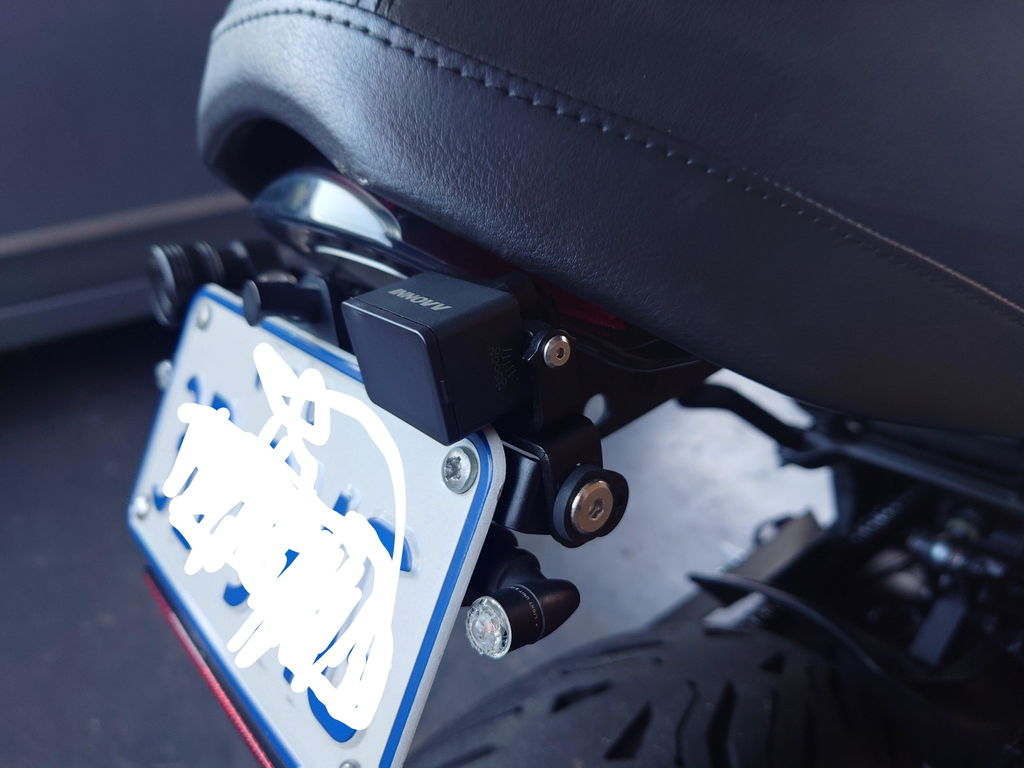

I took the plunge during Black Friday sales as I’d been contemplating buying these after seeing numerous reviews on YouTube. Thee install was very easy and I had it installed on a BMW R1250GSA in about 2hrs but I was taking time to make it as near as possible.
The unit works great and the lights a very bright.

3rd Eye BSD system

Work great

This is my third K5. Nowmhave one non each of my bikes.

Innovv K7 review

Cameras exceed my expectations and technical back up was prompt and solved all questions. Uploading videos from the unit to the iPhone was very very fast 5g and definitely the way to go when the unit is under the seat and not very accessible.

Item installed on motorcycle. The WI-Fi fails to connect between device & iPhone. INNOVV is aware of the issue for my device. Dissatisfied with the INNOVV K6 so far as it is unusable.
